Concrete frame with lateral stability provided with concrete cores. Columns typically on 7.5 x 8.0m grid. Floor plates are typically 300mm flat concrete slabs.Frames steps back at 5th floor to allow generous terraces and a roof garden to the edge of the building. The two wings of the building are connected by 3 no bridges at each floor in a glazed atrium supported on a steel structure.

Elevational Treatment

The style of the building is contemporary and reflects the high tech nature of the park.

Careful consideration has been given by the architects to the lower levels of the building, permitting it’s function, say offices or cafe, to inform the landscape as it addresses the pedestrian pathways and roads/cycle ways. The design of the façade and the transparent nature of the atrium within One South County has been formed to control and regulate the impact on open space and the public realm and minimise shadowing of the built environment and the woodland.

Glazing

The façade treatment of the building will be largely full height curtain glazing with capped glazed colour coated aluminium framing to the main elevations and insulated metal or shadow box spandrel panels. The glazing is to be double glazing, high performance and clear in nature, with low E transmissions and an approximate G value of 0.34. There are no opening sections in the glazing as the building is fully air conditioned.

The building incorporates a ‘floating or billowing veil’ feature glazed screen which wraps around part of the building. This feature over sails the parapet to create ‘movement’ and interest.

Atrium

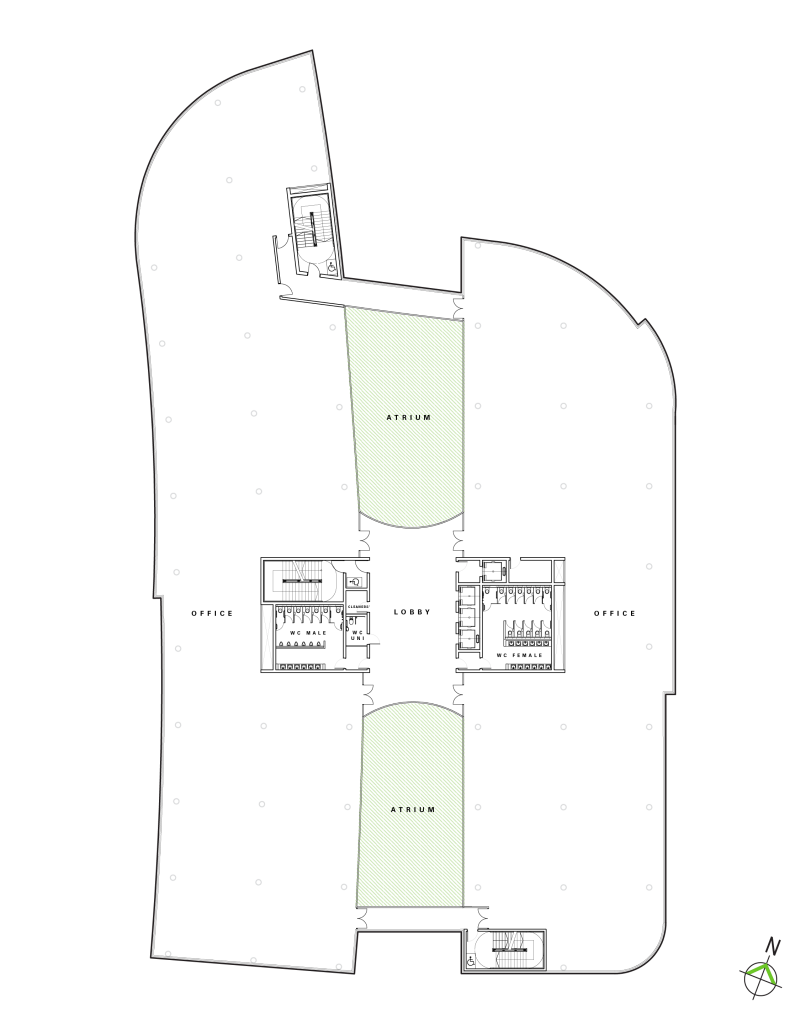

The Atrium will consist of a double glazed sealed system, forming gables and a roof to the heated 5 storey atrium space which permits circulation between the two building wings via pedestrian bridges with glazed balustrades. Access to the reception located at ground level beside the lift banks in the atrium entrance hall, is via hinged and/or mechanised revolving glazed doors.

Stone elements of the building will be finished in a light colour quarried or reconstituted granite.

External Terraces

Selected composite decking or granite faced paving on support feet with proprietary planter boxes.

The main roof will be finished in a sedum green roof to minimise rainwater run off and protect the roof finish from harmful ultraviolet radiation.

External plant equipment will be housed behind metal louvred screens either side of the atrium in the centre of the roofs.

Office

Walls: emulsion painted dry lined.

Floors: 600 x 600 raised access flooring system medium duty screwed down to adjustable pedestals.

Columns: emulsion painted plasterboard encasement.

Ceiling: Suspended board ceiling metal grid ceiling system with plasterboard lining margins. System to incorporate light fittings, diffusers, smoke detectors and illuminated signage. Plasterboard margins to include slot diffusers and down lighting as necessary.

Doors: selected hardwood veneer and hardwood frame.

Reception & Atrium Entrance Hall/Lift Lobbies

Walls: emulsion painted dry lined and feature stone elements.

Floors: Large format natural stone tile.

Ceiling: Decorative feature lights suspended from atrium framework and plasterboard lined bridge soffits with lighting.

Passenger Lifts

Lifts: 4 no 13 person passenger lifts & 1 no goods lift.

Internal Finishes: full height rear view mirror, metal or glass faced walls and full height operation console.

Floors: natural stone/vinyl floor.

Waiting Time: interval time is less than 15 seconds.

Lifts serve all floors from undercroft to fifth floor.

Shower & Changing Facilities

5 no self contained showers and changing area: 2 male, 2 female,

1 gender neutral with universal access

Hardwood seating and secure lockers

Floors and walls finished in stone or ceramic tiling

WCs in shower areas

Toilets

Walls: Large format ceramic tile with feature tile.

Floors: Large format ceramic or stone tile.

Ceilings: Suspended board ceiling metal grid ceiling system with plasterboard lining margins as necessary.

Doors: selected hardwood veneer and hardwood frame.

WC Cubicles: full height with selected laminate finish and stainless steel fittings.

Vanity Units: Composite or stone counter with inset or formed sinks and stainless steel taps etc with full height mirrors.

Sanitary Ware: wall hung wc pans and urinals with concealed cisterns. Demountable panel access.

Air Changes: 8 air changes per hour.

Bicycle Parking

Over 160 bicycle spaces provided in secure undercroft parking area

Direct access to showers and changing rooms

MECHANICAL VENTILATION

Mechanical Ventilation is provided to each floor plate from a central air handling unit complete with Heat Recovery which is located at roof level. Supply and extract ducts are provided in the risers and delivered to each floor plate.

Toilet Core shall have mechanical extract ventilation.

HEATING

A internal roof mounted high efficient condensing boiler will provide Low Pressure Hot Water [LPHW] to serve the AHU’s, hot water (Calorifer) and the LPHW heating demand on each floor plate.

AIR CONDITIONING

A roof top mounted air cooled chiller will provide cooling capacity for fan coil unit [FCU] installation and AHU’s cooling coils. The FCU’s shall heat and cool the office space.

WATER SERVICES

Mains water services is provided to each floor plate. A Cold water storage tank located at roof level provides cold water to Toilet Cores. A Mains Water Break Storage Tank shall be located a grade to provide booster mains fed to the building.

A Hot Water LPHW Calorifer, located in the roof plant room, provides Hot Water to the toilet cores.

INCOMING ELECTRICAL POWER & DISTRIBUTION BOARDS

An external dedicated Sub Station and Switch Room will provide 400 V Electrical power to the building. Separate ESB Metered Tenant Electrical Distribution Boards are provided on each level with Sub-Sections for General Services Power and Lighting Services. The Common areas and Landlord Plant have separate ESB Utility Meters.

FLOOR BOXES AND GENERAL SMALL POWER

Electrical general services power distribution cabling is generally routed under raised access floor and terminated in floor boxes to be installed at a density of 1 per 10m2. Each floor box to contain 2 No. switched 13A double sockets and 4 No. blank plates for data outlets. Cable ways within the Tenant Risers will be provided to facilitate the installation of incoming Telecom cabling form the existing Utility intake position in the basement.

GENERAL LIGHTING

The general lighting within the Tenant areas is designed to achieve an average level of 450 lux in accordance with CIBSE Guidelines and is based on the provision of 600 x 600 mm Ceiling Recessed Energy Efficient LED modular luminaries. Lighting in the new core areas shall be wall mounted LED Bulkhead Luminaires in the stairwells and Ceiling Recessed LED Downlighters in the corridors and Toilets.

EMERGENCY LIGHTING

The emergency lighting is based on self-contained LED Emergency Downlighers, Bulkhead Luminaires & Emergency Exit Signage complete with integrated 3 hour battery backup in accordance with IS 3217 2013 Regulations.

FIRE ALARMS

An L2/L3X addressable Fire Alarm installation has been included in accordance with IS 3218 2013 Regulations and the Fire Officers requirements.

VOICE/DATA (OPTIONAL FIT OUT ITEM)

Wireways within the tenant areas will be provided for future Tenant IT Cabling along with the spare capacity in the floor boxes to accommodate 4 number voice and data outlets.

SECURITY SYSTEMS

Wireways for future Tenant Door access control system will be provided at the entry exit doors to the Tenant demise with the facility to interface the Door Access Control system with the house Fire Alarm system. The installation of the Tenant Intruder alarm, Access Control & Closed Circuit Television equipment & cabling is excluded.

Facility shall be provided to extend the existing building Intercom system to the new Tenant areas.

Means of Escape

Design ratio: 1 person per 6 sq.m
